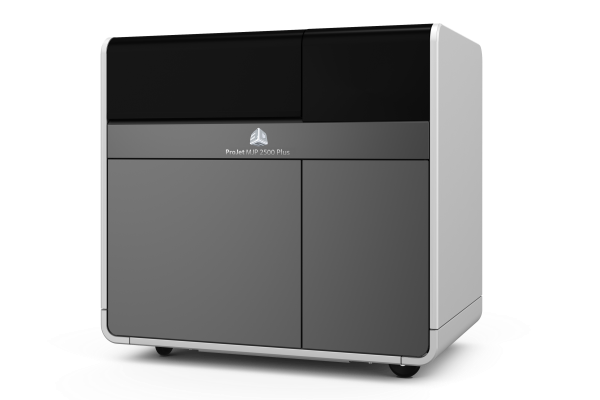

ProJet MJP 2500 Plus 3D printer

The 3D printer with a broad range of applications

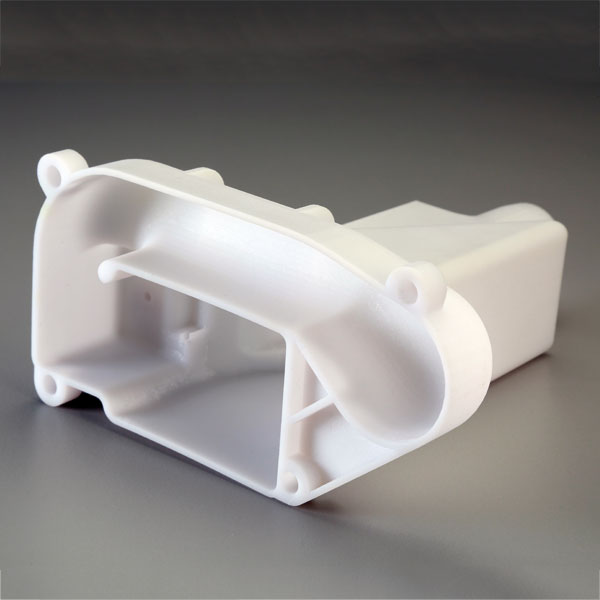

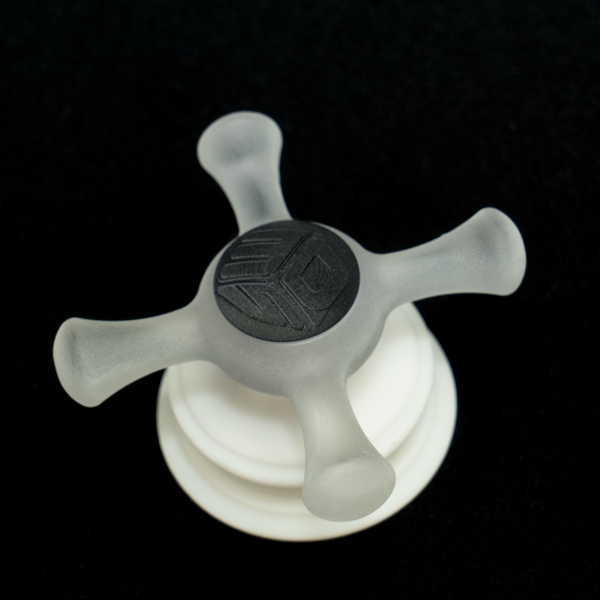

The resolution and detail display of the ProJet MJP 2500 Plus 3D printer come close to the outstanding qualities of the ProJet MJP 3600er series – and at a very attractive entry level price at that. With easy and intuitive operation with minimum effort during parts processing, ProJet MJP 2500 Plus systems produce accurate, sturdy plastic parts with very good surfaces in white or black. The ProJet MJP 2500 Plus can additionally process translucent and two elastomer materials and thus makes prototypes for a very broad range of applications.

Materials

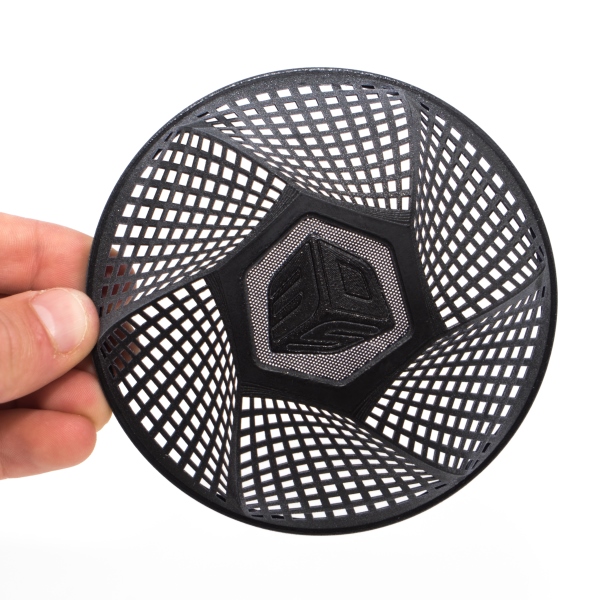

  • VisiJet M2 RBK plastic material white black 1.5 kg cartridges
  • VisiJet M2 RWT plastic material white in 1.5 kg cartridges

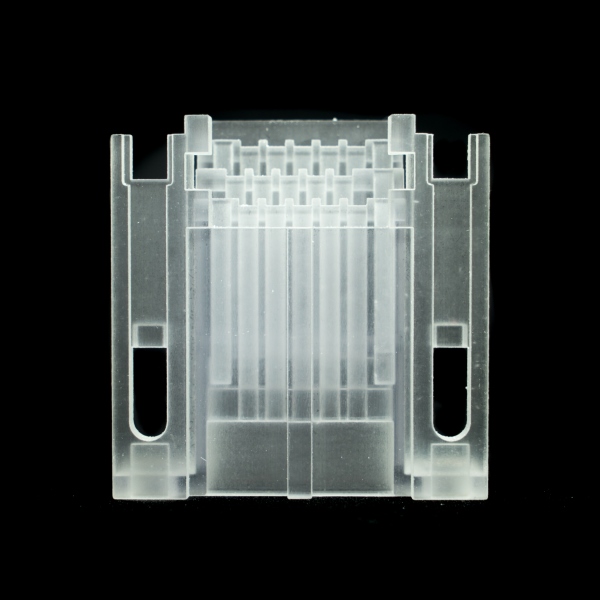

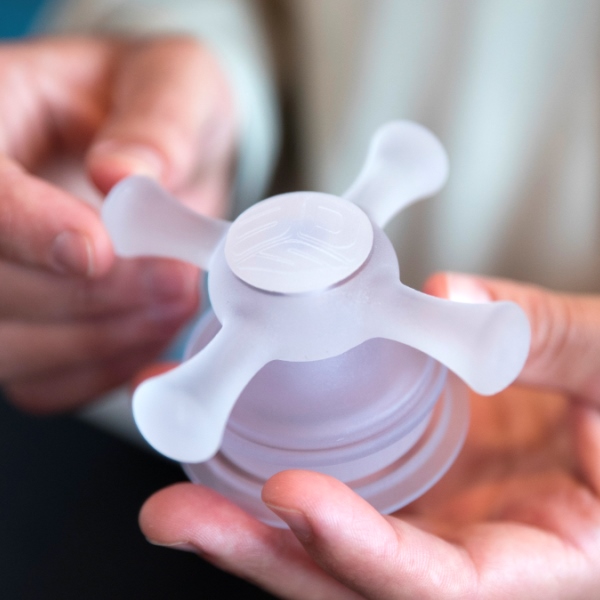

  • VisiJet M2 RCL plastic material clear in 1.5 kg cartridges

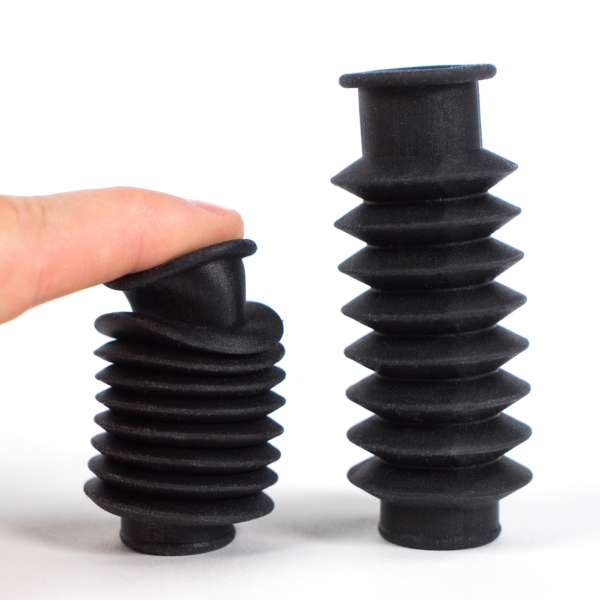

  • VisiJet M2 EBK elastomer material black in 1.5 kg cartridges
  • VisiJet M2 ENT elastomer material natural in 1.5 kg cartridges
  • VisiJet M2 SUP support material in 1.4 kg cartridges

Technical specifications

HD mode (high-resolution):



  • Installation space: 295 x 211 x 142 mm in X,Y,Z axis
  • Coating thickness: 0.032 mm
  • Resolution: 800 x 900 x 790 DPI (X,Y,Z axis)

Closed system with integrated material cartridge system:



  • Dimensions: approx. 1120 x 740 x 1070 mm ( width, depth, height )
  • Weight: approx. 211 kg
  • Power connection: 230 V, 16 A, 50 Hz
  • Data connection: Ethernet TCP-IP
  • CE certified

Product specifications for download
