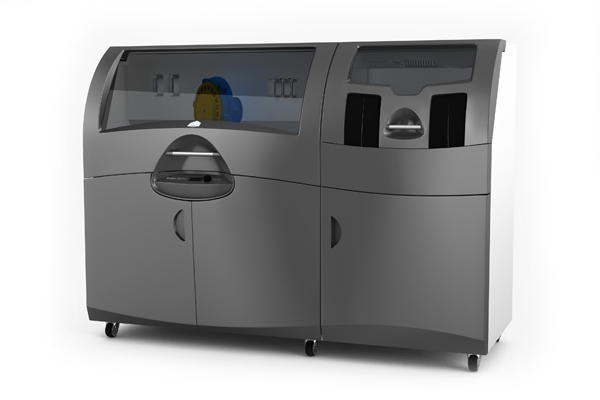

ZPrinter-ProJet 660Pro

The perfect 3D printer for high-quality figures

The ZPrinter-ProJet 660Pro is the professional ZPrinter with maximum resolution and best colour representation.
Large installation space, maximum resolution, maximum colour range through an additional black printhead, full ease of use with integrated powder handling and full productivity.

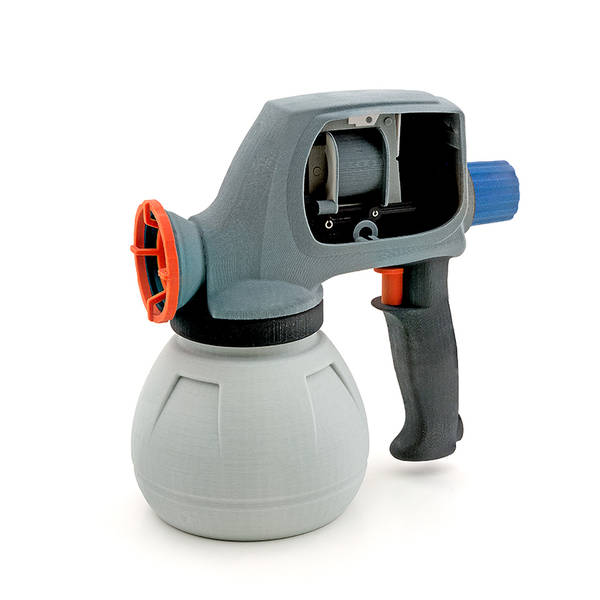

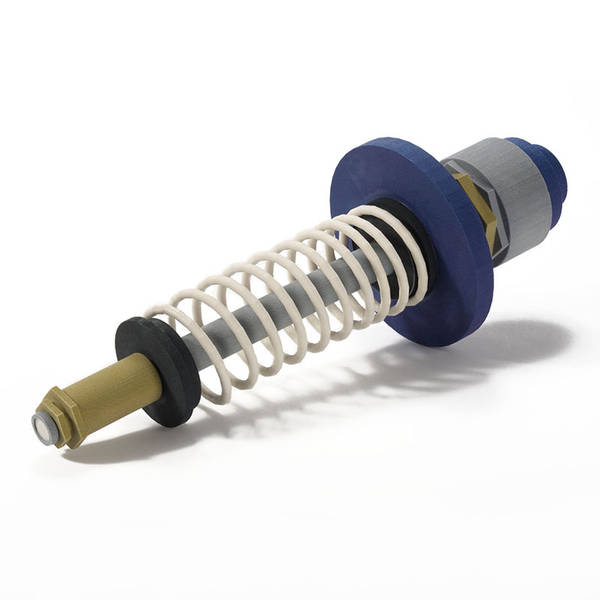

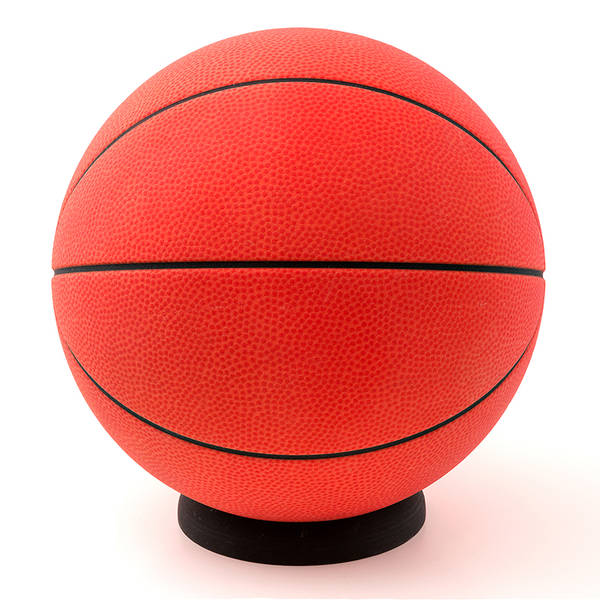

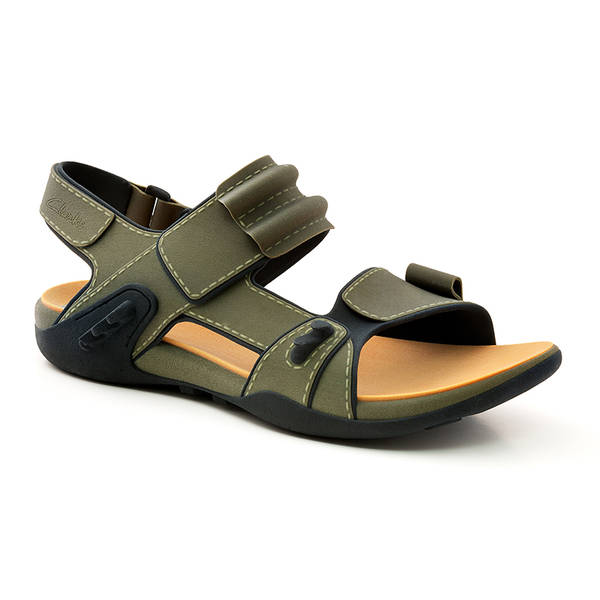

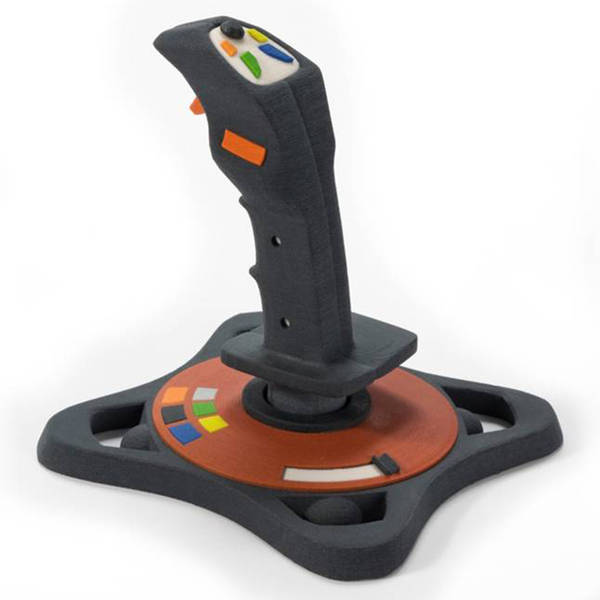

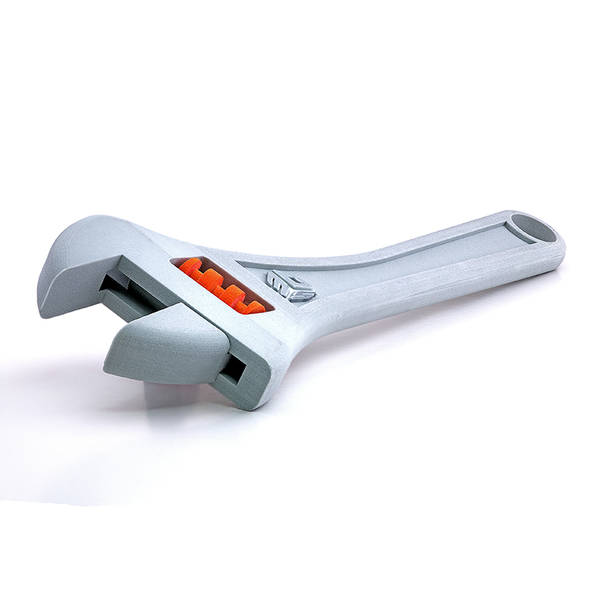

This CJP system is the perfect tool for professional users. It is also perfectly suited for high-quality figure printing or the perfect multi-colour model in the consumer goods area.

Technical specifications

  • Installation space: 381 x 254 x 203 mm
  • Colour: approx. 2.8 million colours
  • Resolution: 600 x 540 dpi
  • Minimum detail: 0.1 mm
  • Vertical construction speed: approx. 20 mm/hour
  • Material: High-performance compound material
  • Layer thickness: 0.1 mm
  • Number of print heads: 5 with 1520 nozzles
  • File formats for printing: STL, VRML, PLY, 3DS, ZPR
  • Device dimensions: 188 x 79 x 145 cm
  • Device weight: 340 kg
  • Network requirements: 208-240 V, 4,0 A
  • Workstation compatibility: Windows® 7, Windows® XP Pro
