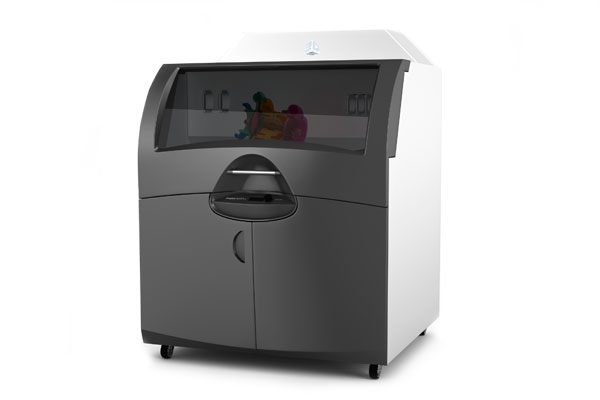

ZPrinter-ProJet 860Pro

The ZPrinter-ProJet 860Pro is the bigger version of the ZPrinter ProJet 660Pro with maximum resolution and best colour representation.

Maximum installation space, maximum resolution, maximum colour range through an additional black printhead and great productivity for large components.

The CJP system for the efficient 3D printing of large-format components.

Technical specifications

  • Installation space: 508 x 381 x 229 mm
  • Colour: approx. 390,000 colours
  • Resolution: 600 x 540 dpi
  • Minimum detail: 0.1 mm
  • Vertical construction speed: approx. 12–20 mm/hour
  • Material: High-performance compound material
  • Layer thickness: 0.1 mm
  • Number of print heads: 5 with 1520 nozzles
  • File formats for printing: STL, VRML, PLY, 3DS, ZPR
  • Device dimensions: 119 x 116 x 162 cm (printer unit) (blow-off station
  • separate)
  • Device weight: 363 kg (printer unit)
  • Network requirements: 208-240 V, 4.0 A (printer unit)
  • Workstation compatibility: Windows® 7, Windows® XP Pro
